Alumil SD77
Thermal value - Uw
down to 0.7 W/m²K
Air tightness window
Class 4 (600Pa)
Watertightness
Class 9A (600Pa)
Wind load resistance
Class C4 (1600Pa)
Sound Reduction
45(-1,-5) dB
Description

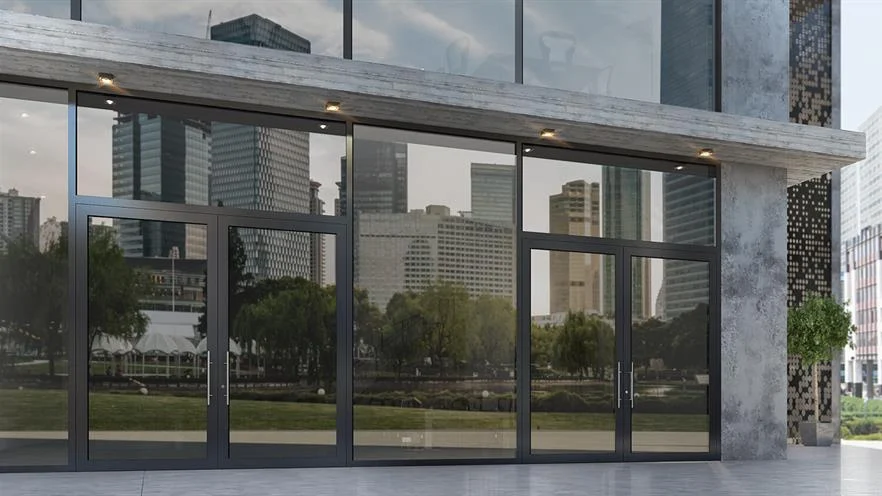

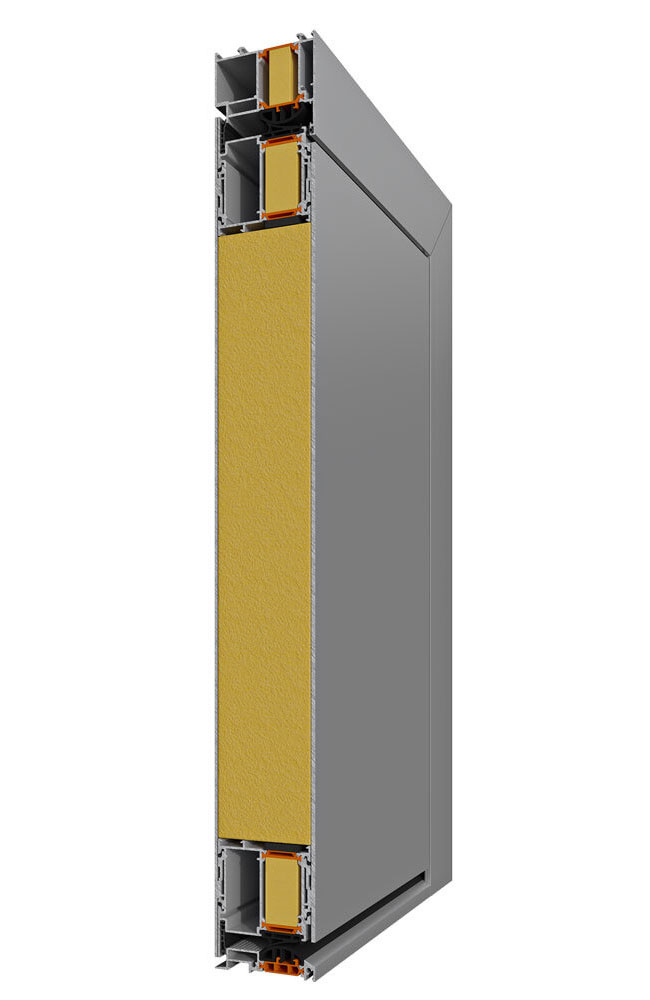

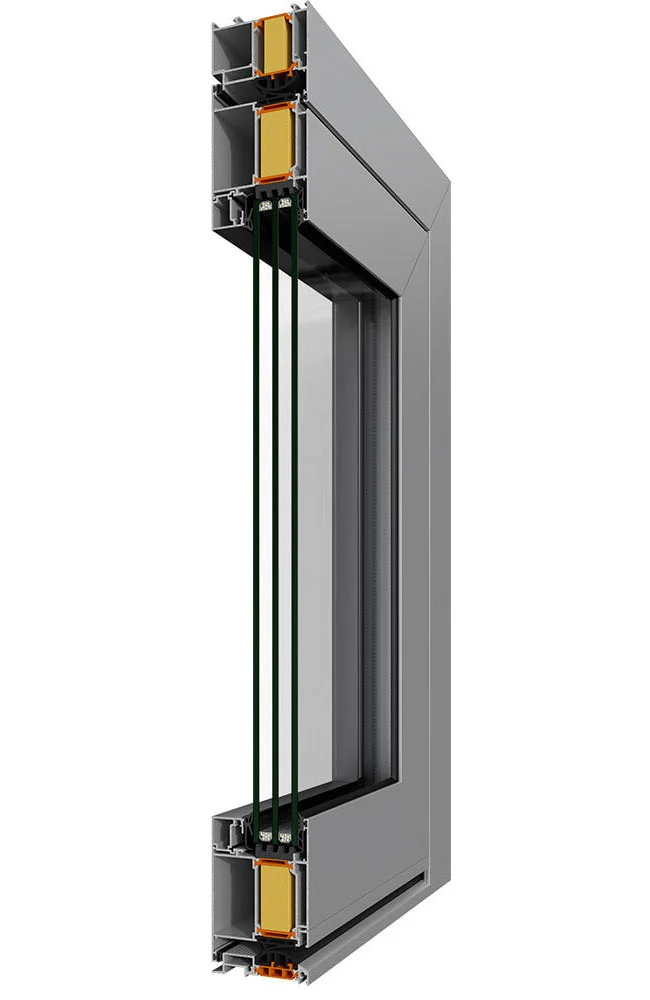

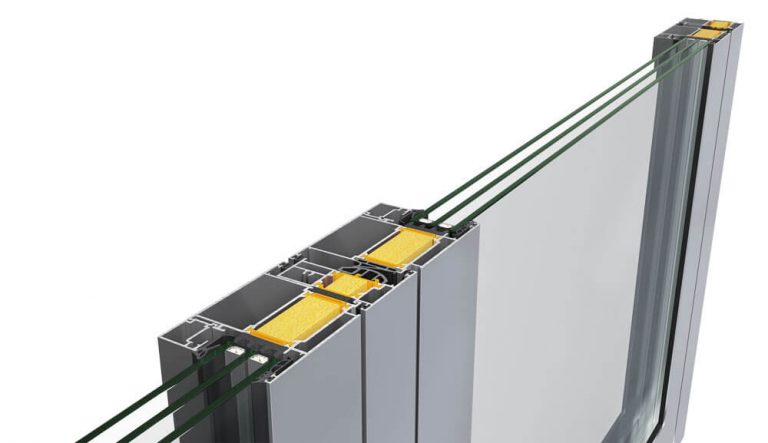

SMARTIA SD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Advantages
Slim steel-look design in a variety of styles
Futureproof and durable window solution
Crisp, high-quality finishing in every detail
Technical Characteristics
Frame width
71 mm
Frame depth
77 mm
Vent depth
77 mm

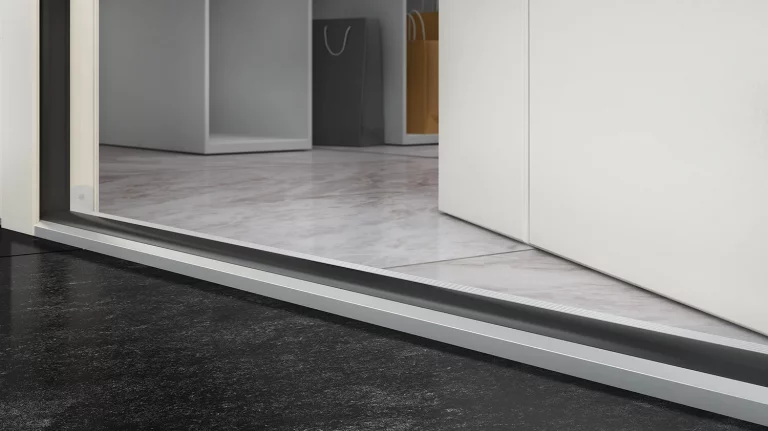

Min Threshold
16 mm
Glass thickness
up to 55mm
Performance
Thermal insulation - Uw
0.7 W/m²K
Air tightness window
Class 4 (600Pa)
Water tightness
Class 9A (600Pa)
Wind load resistance
Class C4 (1600Pa)
Burglary resistance
PAS 24 - RC2
Characteristics
Max. vent height
3000 mm
Max. width of vent
1400 mm
Max. weight of vent
180 kg / 400 lb
Downloads
Sections
Choose color
RAL 3005
