Reynaers SlimLine 38
Thermal value - Uw
down to 1.6 W/m²K
Air tightness window
Class 4 (600Pa)
Watertightness
Class 9A (600Pa)
Wind load resistance
Class C3 (1200Pa)
Sound Reduction
45(-1,-5) dB
Description
With SlimLine 38, you have always got a slender door solution at hand. The ultraslim system comes in multiple design variants and offers refined quality in every detail. Perfect for both minimalistic new-builds and renovation projects, the timeless steel look design blends perfectly with any architectural style. Variants such as balcony doors or terrace doors with optional triple glazing and burglarproof performance (RC2 / PAS 24), help you reach today’s safety and energy efficiency standards. In fact, SlimLine 38 is both an elegant and ecofriendly system. Experience low-carbon, Cradle To Cradle® certified quality whenever you open or close this aluminum door solution.
Advantages
Slim steel-look design in a variety of styles
Futureproof and durable window solution
Crisp, high-quality finishing in every detail
Technical Characteristics
Min. frame width (outward opening)
38 mm
Min. frame-vent width (outward opening)
21 mm
Frame Depth
76 or 99 mm
Vent depth
86 mm
Glass thickness
up to 55mm
Performance
Thermal insulation - Uw
down to 1.6 W/m²K
Air tightness window
Class 4 (600Pa)
Water tightness
Class 9A (600Pa)
Wind load resistance
Class C4 (1600Pa)
Burglary resistance
PAS 24 - RC2
Characteristics
Max. vent height
3000 mm
Max. width of vent
1400 mm
Max. weight of vent
130 kg / 286 lb

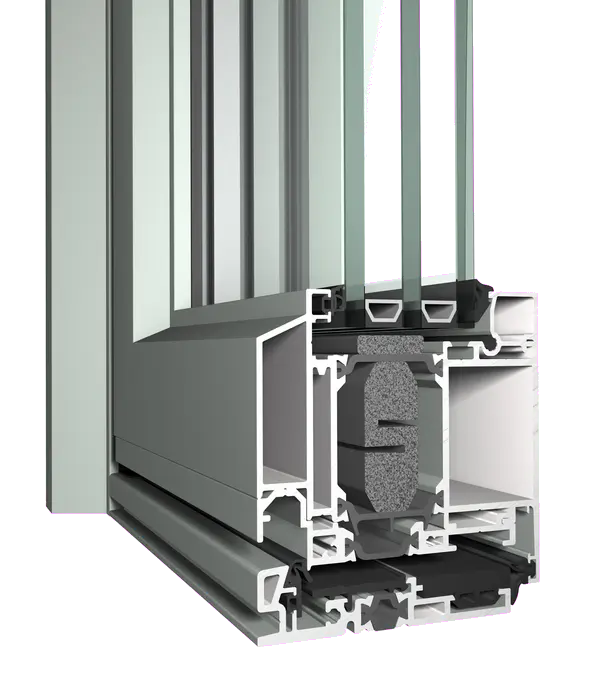

Sections
Choose color
RAL 3005
Compare products
 |  |  |  |
ALUMIL SMARTIA S67 PHOS Uw from 0.1673 BTU/hr·ft²·°F | ALUMIL S77 PHOS Thermal value - Uf/Uw (W/m²K) from 0.85 / 0.92 W/m²K | Aluprof MB-79 Uf from 0.15 BTU/(hr·ft²·°F) | Aluprof MB-79N Casement — |
SOUND REDUCTION 45 dB | Air tightness window Class 4 (600Pa) | Airtightness Class 4 | EN 12207:2001 | — |
WATER TIGHTNESS CLASS Ε1500 | Watertightness Class E1350 (1350Pa) | Watertightness E 1950 | — |
AIR PERMEABILITY CLASS 4 | Wind tightness Class B4 (1600 Pa) | BURGLAR RESISTANCE RC3 | — |
BURGLAR RESISTANCE RC3 | Sound Reduction 44 dB | — | — |
