Reynaers SlimLine 68
Thermal value - Uf/Uw (W/m²K)
1.9 / 1.1 (W/m²K)
Air tightness window
Class 4 (600Pa)
Watertightness
Class E1050 (>1050 Pa)
Wind tightness
Class E2400 (2400 Pa)
Sound Reduction
up to 47 dB
Description

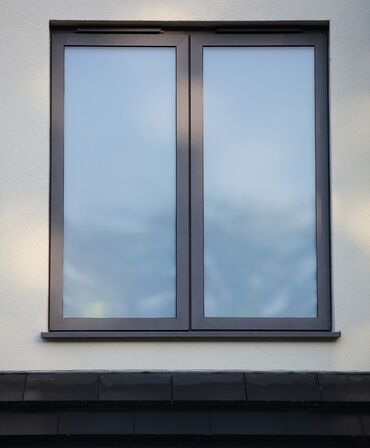

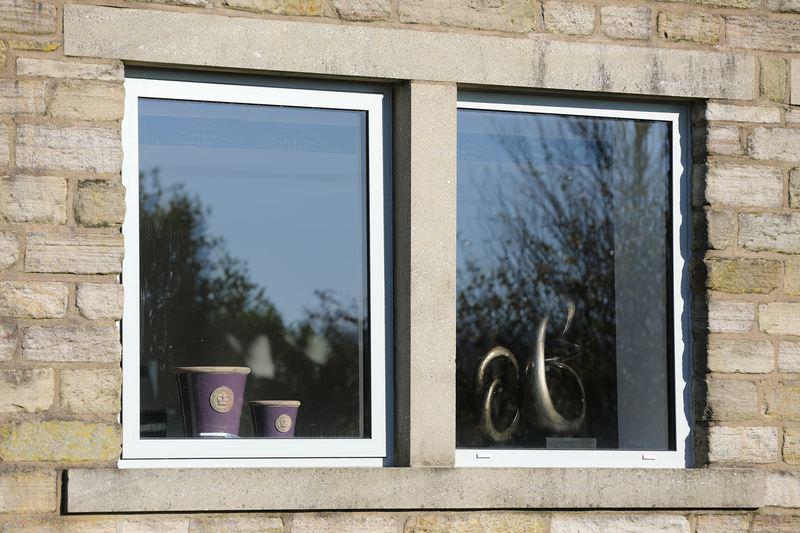

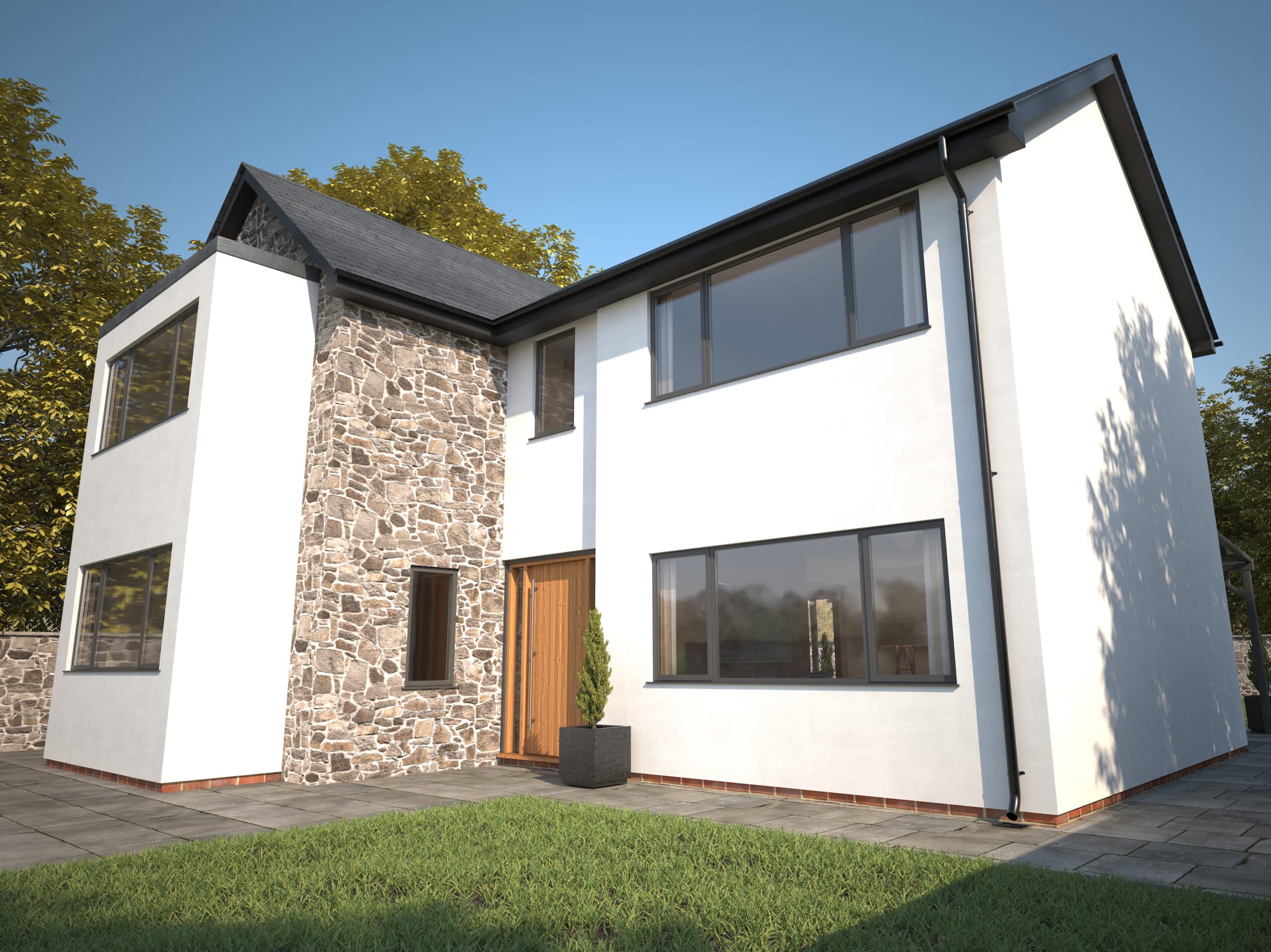

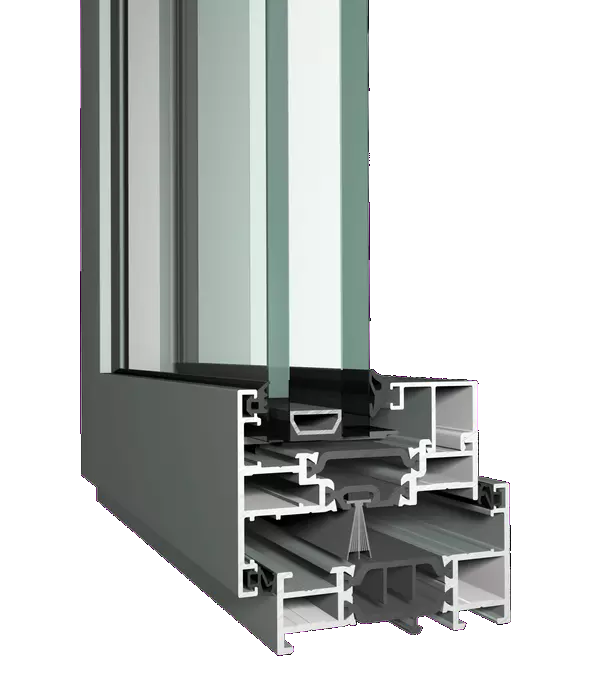

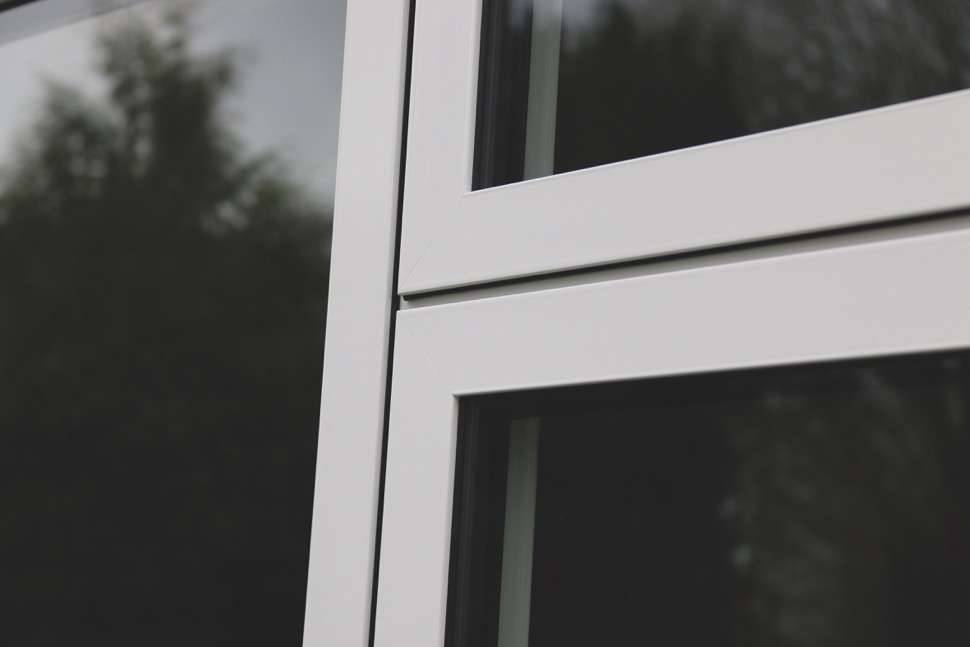

Reynaers’ Slimline 68 window system is specifically designed to meet the demand for an outward opening window with very slim profiles. Particularly suited to use in residential properties, this window maximizes the glass area to let in lots of natural daylight. The slim frames and clean lines make this window ideal for both contemporary and more traditional properties, as the design of the window mimics the sight lines of the original steel-framed windows. Its 68mm frame depth makes it perfect as a replacement window as it usually fits within the existing plaster line. SlimLine 68 vents can be glazed from the inside as well as the outside, and are available on a standard and a HI insulation level.
Advantages

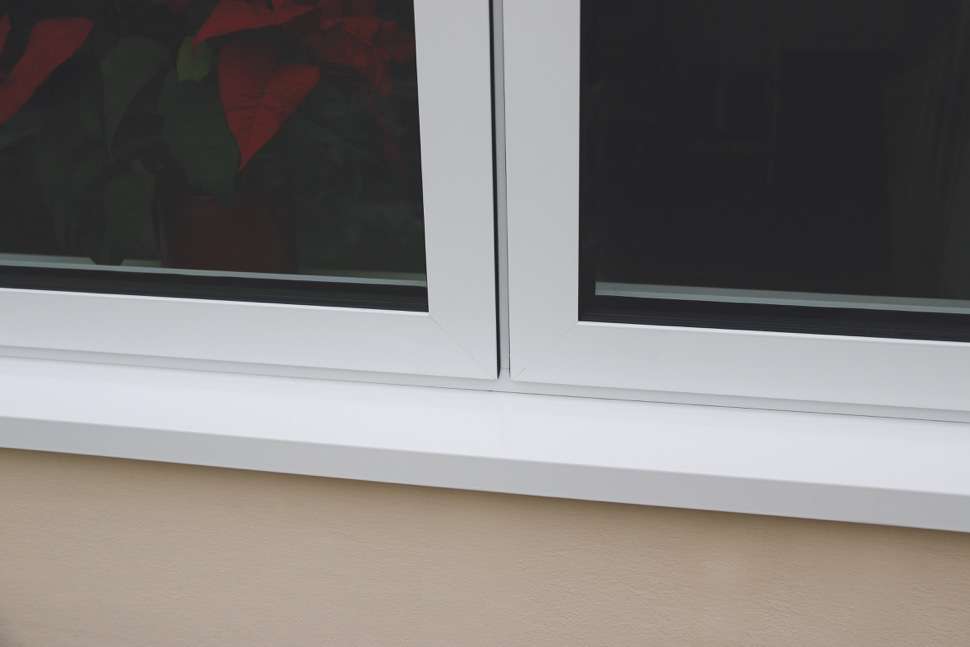

Ultra slim sightlines in outward opening
High level of comfort with excellent acoustic, thermal and weather sealing performances
Safe and secure with SBD and PAS24 rating
Certificates
Technical Characteristics

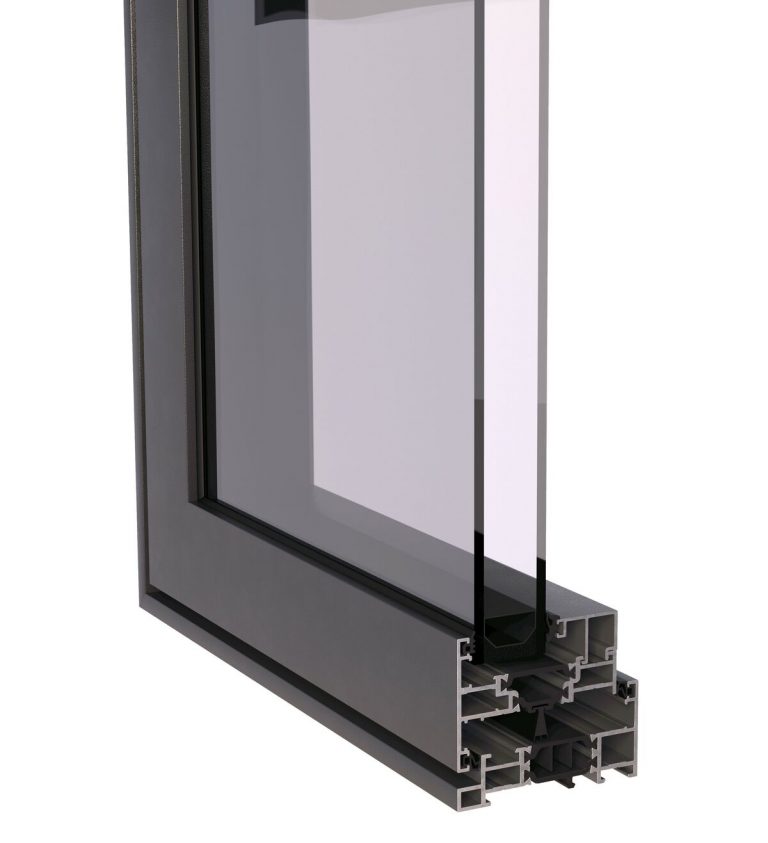

Min. visible width outward opening window - Frame
15 mm
Min. visible width outward opening window - Vent
50 mm

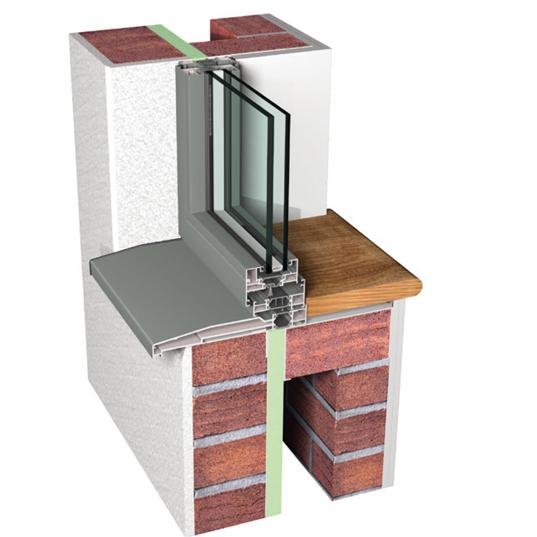

Frame depth
68 mm
Vent depth
68 mm
Glass thickness
up to 43 mm
Performance
Thermal insulation - Uf
down to 2.6 W/m²K depending on the frame/vent combination and the glass thickness.
Thermal insulation - Uw
≥ than 1.4 W/m²K for a standard window section(²)
Air permeability
Class 4 (600Pa)
Water tightness
Class 9A (600Pa) & Class E1050 (>1050 Pa)
Windload resistance
Class E2400 (2400 Pa)
Sound Reduction
up to 47 dB
Burglary resistance
PAS 24 - RC2
Characteristics
Min. / Max. height of vent
23.6 inch / 300 mm - 110 inch / 1500 mm
Min. / Max. width of vent
17.7 inch / 500 mm - 47.2 inch / 1300 mm
Max. weight of vent
110 lb / 50 kg
Durability
Class 3 (20000 cycles)
