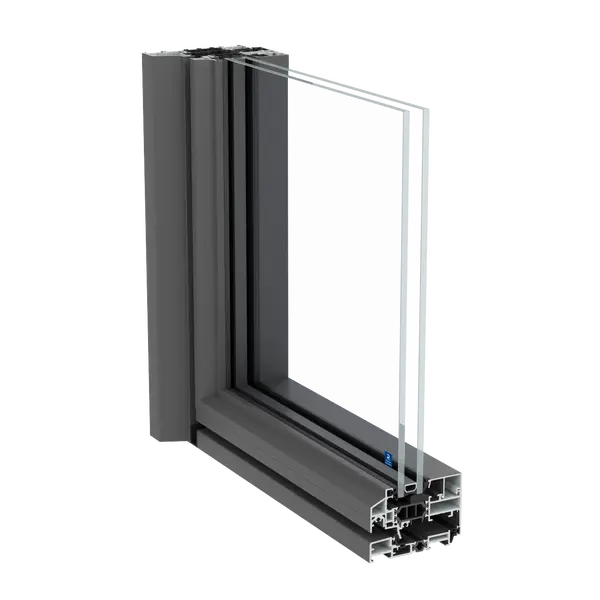

Reynaers SlimLine 38 Ultraslim
Thermal value - Uw
down to U-factor 0.28 Btu/(h·ft²·°F)
Air tightness window
Class 4 (600Pa)
Watertightness
Class 8A (450 Pa)
Wind load resistance
Class C3 (1200Pa)
Sound Reduction
45(-1,-5) dB
Description
Perfect for both minimalistic new-builds and renovation projects, SlimLine 38s timeless steel look design blends perfectly with any architectural style. For an even more refined look and feel, try the Ultraslim variant.
Advantages
Slim steel-look design in a variety of styles
Futureproof and durable window solution
Crisp, high-quality finishing in every detail
Technical Characteristics
Min. frame width (inward opening)
38.5 mm / 1.52 in
Min. frame-vent width (inward opening)
61.6 mm2.43 in
Min. vent width (inward opening)
23.1 mm / 0.91 in
Performance
Thermal insulation - Uw
down to U-factor 0.28 Btu/(h·ft²·°F)
Air tightness window
Class 4 (600Pa)
Water tightness
Class 8A (450Pa)
Wind load resistance
Class C3 (1200Pa)
Burglary resistance
RC2
Characteristics
Max. vent height
2800 mm / 110.2 in (9 ft 2 in)
Max. width of vent
1200 mm / 47.2 in (3 ft 11 in)
Max. weight of vent
130 kg / 286 lb
Downloads
Sections
Choose color
RAL 3005
