ALUMIL SUPREME S650 PHOS
SOUND REDUCTION
46dB
WATER TIGHTNESS
CLASS 9A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5
BURGLAR RESISTANCE
RC2
Description
The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.
Advantages
Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces
High energy savings thanks to exceptional energy efficiency
High-security level
Exceptional sound insulation
Maximum ease of use and high functionality
Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version SUPREME S650 PHOS Eclipse)
Alternative version for automated sliding sashes (SUPREME S650 e-ΜΟΤΙΟΝ)
Ease of access according to specifications for people with special needs and children
Wide variety of typologies Ideal for wide spans
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Certificates
Technical Characteristics
WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
Performance
SOUND REDUCTION
46dB
WATER TIGHTNESS
CLASS 9A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5
BURGLAR RESISTANCE
RC2
Uf
0.194 BTU/hr·ft²·°F
Characteristics
TYPES OF TYPOLOGY
Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with fixed lights, Combinations with fly-screen
SASH WEIGHT
up to 2200lb (1000 Kg)
SASH DEPTH
≈ 2.44 inch (62 mm)
MINIMUM VISIBLE ALUMINUM FACE HEIGHT
Concealed profiles
MINIMUM VISIBLE ALUMINUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
1 inch (25 mm)
GLAZING TYPE
Double - Triple
MAXIMUM GLAZING THICKNESS
up to ≈ 1.8 inch (46 mm)
MECHANISM ALUMIL SEALING METHOD
Perimetrical with tri-fin brushes
MINIMUM THRESHOLD HEIGHT
≈ 1.37 inch (35 mm)
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
Typologies
Double horizontal sliding sash
Single sliding sash with fixed light
Four horizontal sliding sashes
Double horizontal sliding sash meeting stile with fixed lights
Corner typology window, with horizontal parallel sliding sashes
Corner typology with two sliding sashes and fixed lights
Triple horizontal sliding sash
Four horizontal sliding sashes

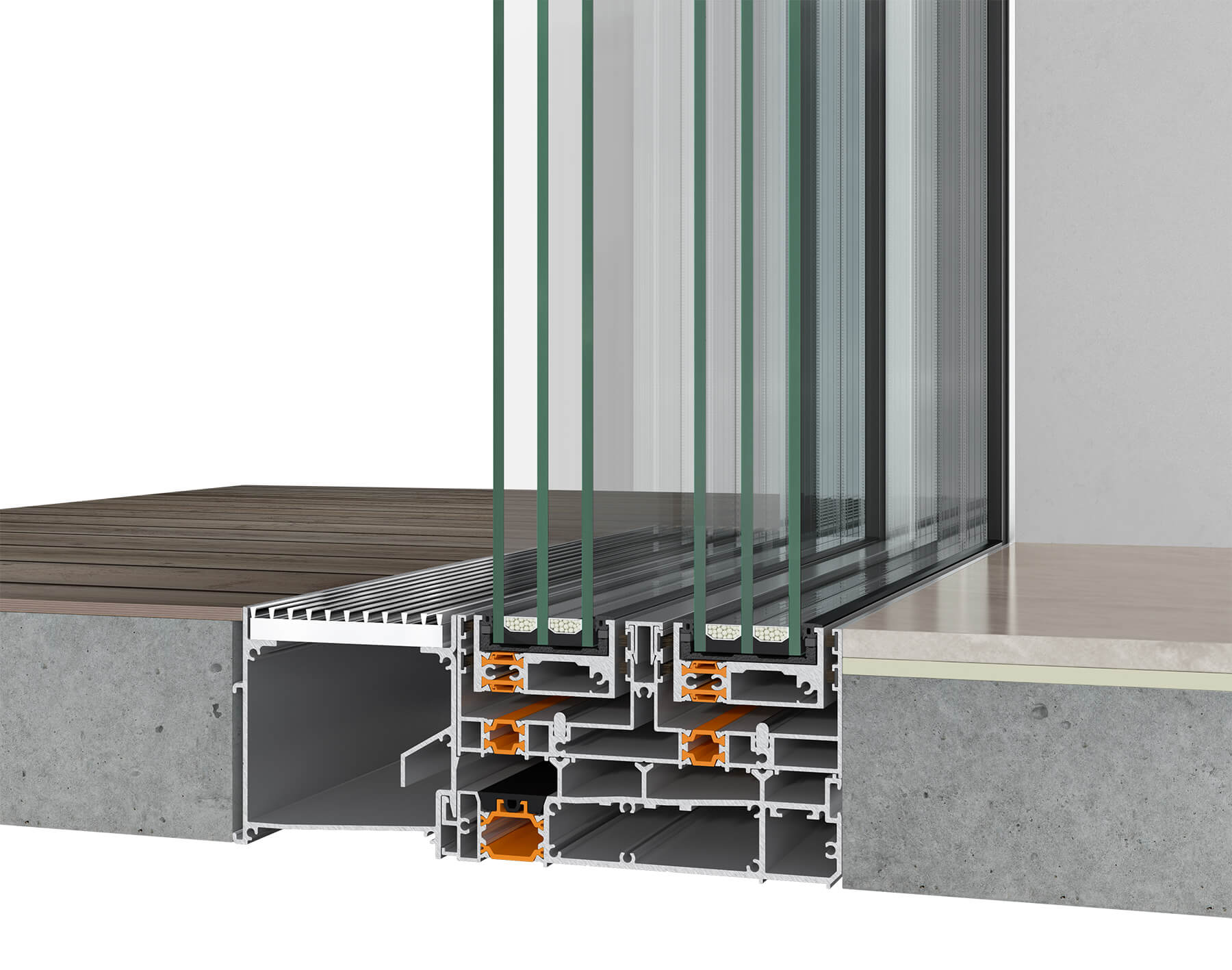

Sections
