ALUMIL S77 PHOS
Thermal value - Uf/Uw (W/m²K)
from 0.85 / 0.92 W/m²K
Air tightness window
Class 4 (600Pa)
Watertightness
Class E1350 (1350Pa)
Wind tightness
Class B4 (1600 Pa)
Sound Reduction
44 dB
Description

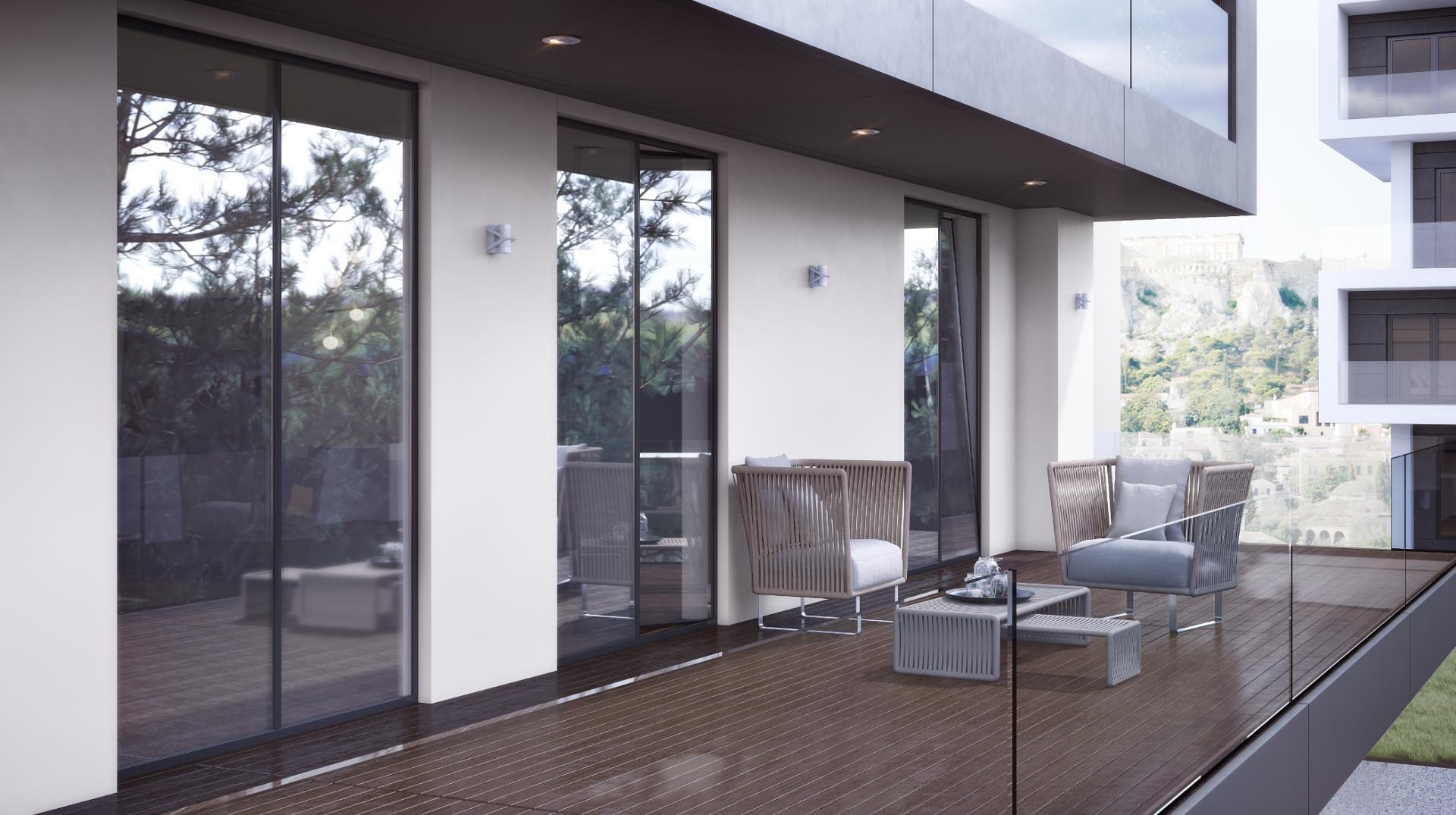

Alumil S77 PHOS system offers alternative solutions for frames with concealed sash and fittings. This version is a perfect match for conceptual building plans that require a lot of natural light. The significantly reduced visible aluminum face width allows architects and designers to combine exterior and interior space. The system offers high thermal insulation and water tightness performances, which along with the high sound reduction make it ideal for the most demanding projects.
Advantages
Very high energy savings thanks to high energy efficiency (Passive House certified)
High security level
Exceptional sound insulation
Ease of use and high functionality
Modern design
Ease of access according to specifications for people with special needs and children
Wide variety of typologies and solutions
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Suitable for Passive House constructions in regions that lie in warm/temperate climate zone
Certificates
Technical Characteristics
Min. frame width (Concealed)
67.0 mm
Min. frame-vent width (Concealed)
67.0 mm
Frame depth
77.0 mm
Vent depth
79.5 mm
Glass thickness
24mm - 67 mm
Performance
Thermal insulation (Best) - Uf
from 0.85 W/m²K
Thermal insulation (Best) - Uw
from 0.92 W/m²K
Air tightness window
Class 4 (600Pa)
Water tightness
Class E1350 (1350Pa)
Windload resistance
Class B4 (1600 Pa)
Sound Reduction
42 dB
Burglary resistance
RC2 / RC3
Characteristics
Min. / Max. height of vent
23.6 inch / 600 mm - 110 inch / 2800 mm
Min. / Max. width of vent
17.7 inch / 450 mm - 47.2 inch / 1200 mm
Max. weight of vent
180 kg / 400 lb
Typologies
Double tilt and turn with fanlight
Double tilt and turn window with fixed light
Double tilt and turn with light
Double tilt and turn window with low thresold
Double tilt and turn window
Single tilt & turn casement with P.W.D. low thresold
One sash tilt and turn
Vertical pivot window
Horizontal pivot window
Double tilt and turn with fanlight
Double tilt and turn window with fixed light
Double tilt and turn with light
Double tilt and turn window with low thresold
Double tilt and turn window
Single tilt & turn casement with P.W.D. low thresold
One sash tilt and turn

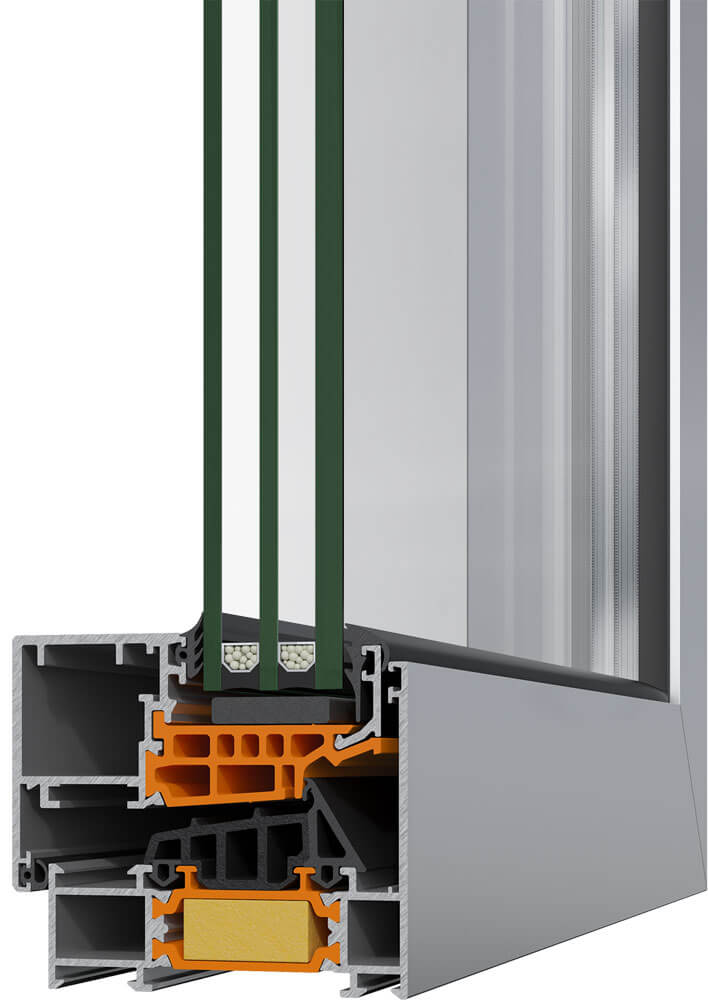

Sections
